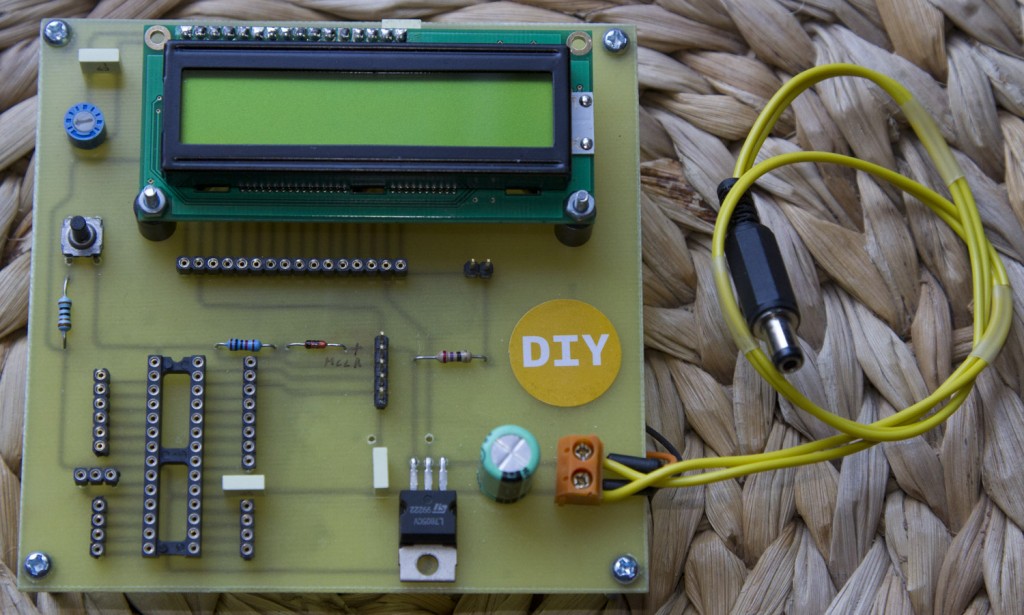

LCD Demo board for PIC

This board was designed to test quickly if a PIC microcontroler run correctly, easy to use, make your connections between pin header and LCD, also a socket is available for quartz to test with any kind of frequency. Layout is available.

IMG_1622
