Charge pump DC/DC converter with Max756

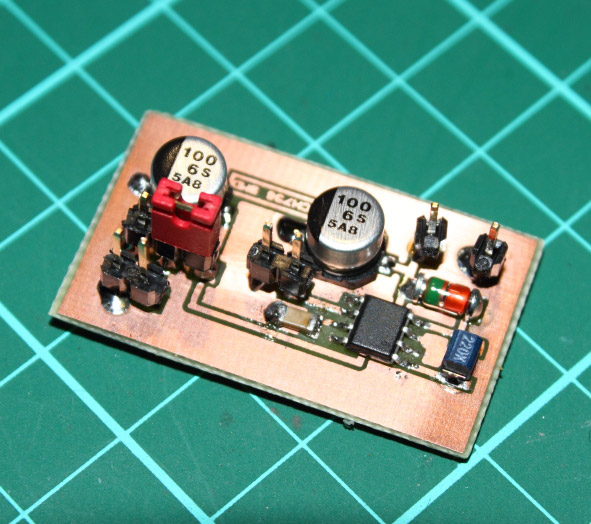

Here is two version of Max 756 PCB, the MAX756/MAX757 are CMOS step-up DC-DC switching regulators for small, low input voltage or battery-powered systems.
The MAX756 accepts a positive input voltage down to 0.7V and converts it to a higher pin selectable output voltage of 3.3V or 5V.
The MAX757 is an adjustable version that accepts an input voltage down to 0.7V and generates a higher adjustable output voltage in the range from 2.7V to 5.5V
More infos in the datasheet
Layout ARES PCB available SMD and DIP version.
