RS232 Interface

Sometimes you need to connect something with serial RS232 bus, a good way is this:

“The MAX232 is an integrated circuit, first created by Maxim Integrated Products, that converts signals from an RS-232 serial port to signals suitable for use in TTL compatible digital logic circuits. The MAX232 is a dual driver/receiver and typically converts the RX, TX, CTS and RTS signals.”

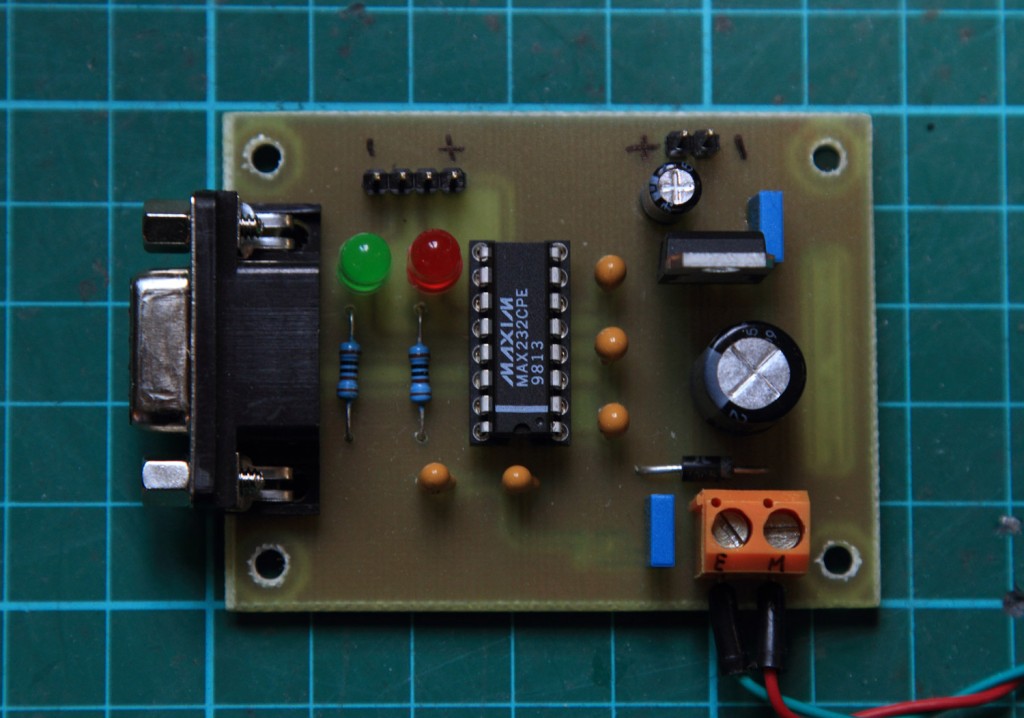

Update 1: Here is a simple Rs232 interface, basically it was designed for a another avorted project, click on the picture to got the layout (Ares) file.

rs232interface3

rs232

Datasheet
ARES PCB Layout
