Wireless RF probe for Arduihome

Update [17/02] – Project redesigned, look this following post.

Update 27/01, I ‘ll finally use ESP8266 chip, for the same cost, Wifi connections on the probes will be more flexible, eliminate any constraints, quantity of probes, signal multiplexing, and data exploitation …

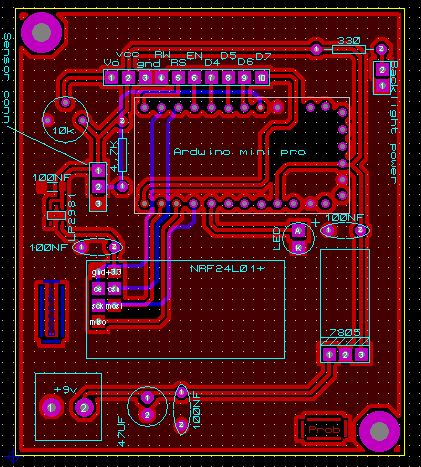

Under development, some wireless probe in the goal to send data’s, temperature and humidity level directly to arduino, with displaying on a 2×8 LCD in live, using NRF24L01+ RF chip and DS18B20, DHT22 probe. The board is compatible with both.


The code is very inspired from some Internet source, ( NRF24L01+ support only byte function, so he send only temp without decimal dot).

Sketch for DS18 sensor.

Sketch for DHT22 sensor.
