A new small tool to help MMIC calculation

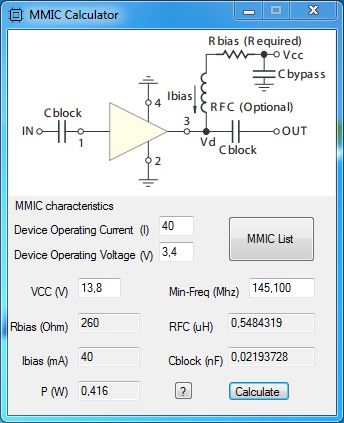

A new small tool to help MMIC calculation, just enter the device operating current and Vcc, and click on calculate button, will give the part needed to typical application, RFChock and Resistor.

As well you can calculate best match for in/out capacitors, depending of frequency.

Download
